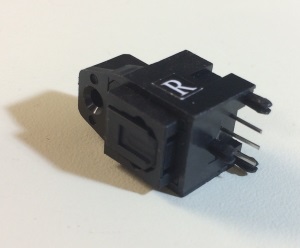

Cliff FCR684205R OTJ-5 Optical Receiver Module (OPT-3)

 Loading product data...

This Cliff optical receiver converts optical input to digital TTL compatible signals. With a maximum data rate of 16Mbps it is compatible with ADAT and S/PDIF signaling protocols, and conforms to the EIAJ CP-1201 digital audio interface standard. This connector accepts standard TOSLINK optical cables.

This module is electrically compatible with the Toshiba TORX171 device, but has a different mechanical outline and board mounting footprint.

The built-in hinged shutter design keeps dust out of the receptacle when not in use and eliminates the easy-to-lose dust plugs of earlier designs.

May be used with the Cliff FCR684205T optical transmitter for a complete optical transmission system.

Features:

• Supply operation +2.7V to +5.5V
• Transfer speed 16Mbps max (NRZ signaling)
• Maximum cable length 20m (APF fiber)
• Power consumption 10mA max
• Peak detection wavelength 700nm
